Features:

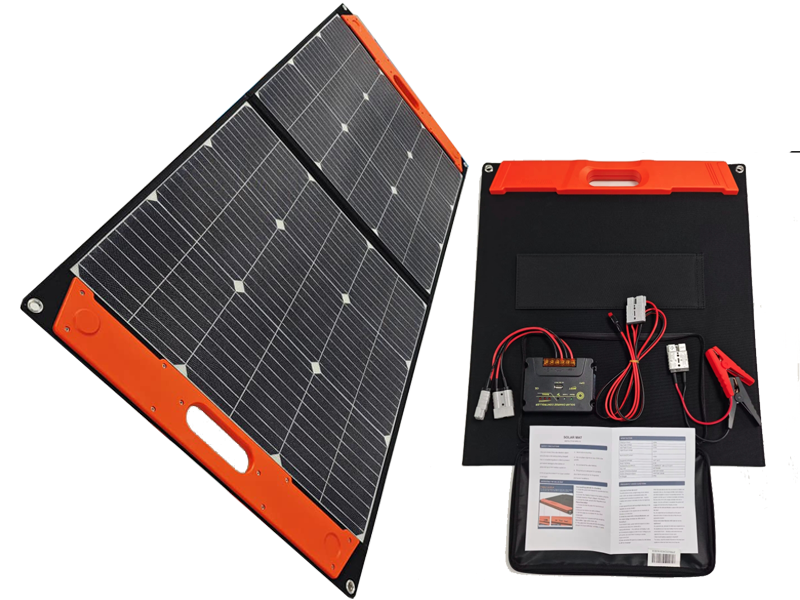

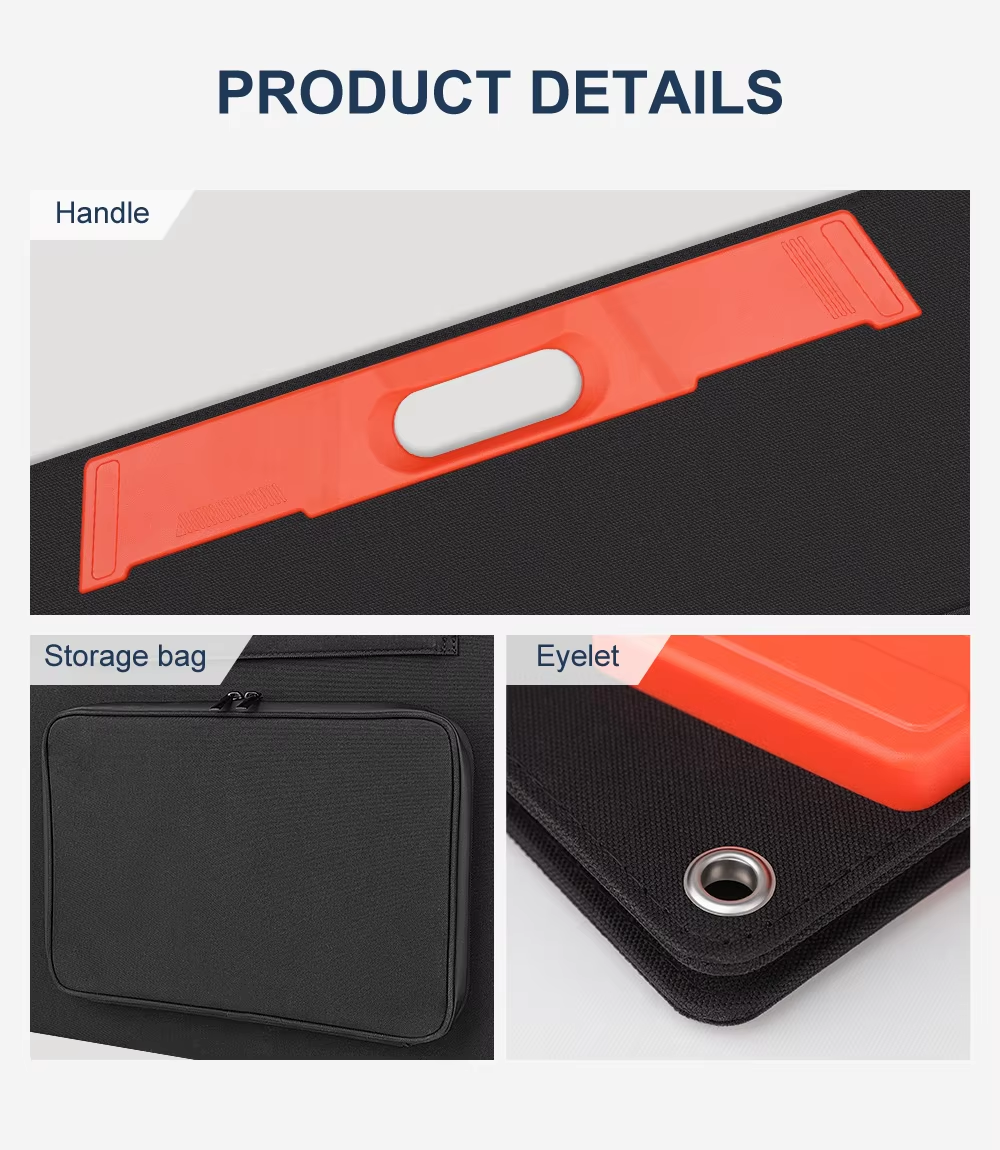

The JX 100 Watt 18 Volt Foldable Solar Panels offer stable output and support simultaneous charging. They feature a built-in magnet that secures the handle position after folding, ensuring convenience and safety. With a lightweight and portable design, the panels come with a lifting handle and metal hole for easy transportation. The independent bracket is equipped with Velcro to secure the end, and the panels also include a storage bag for added portability.

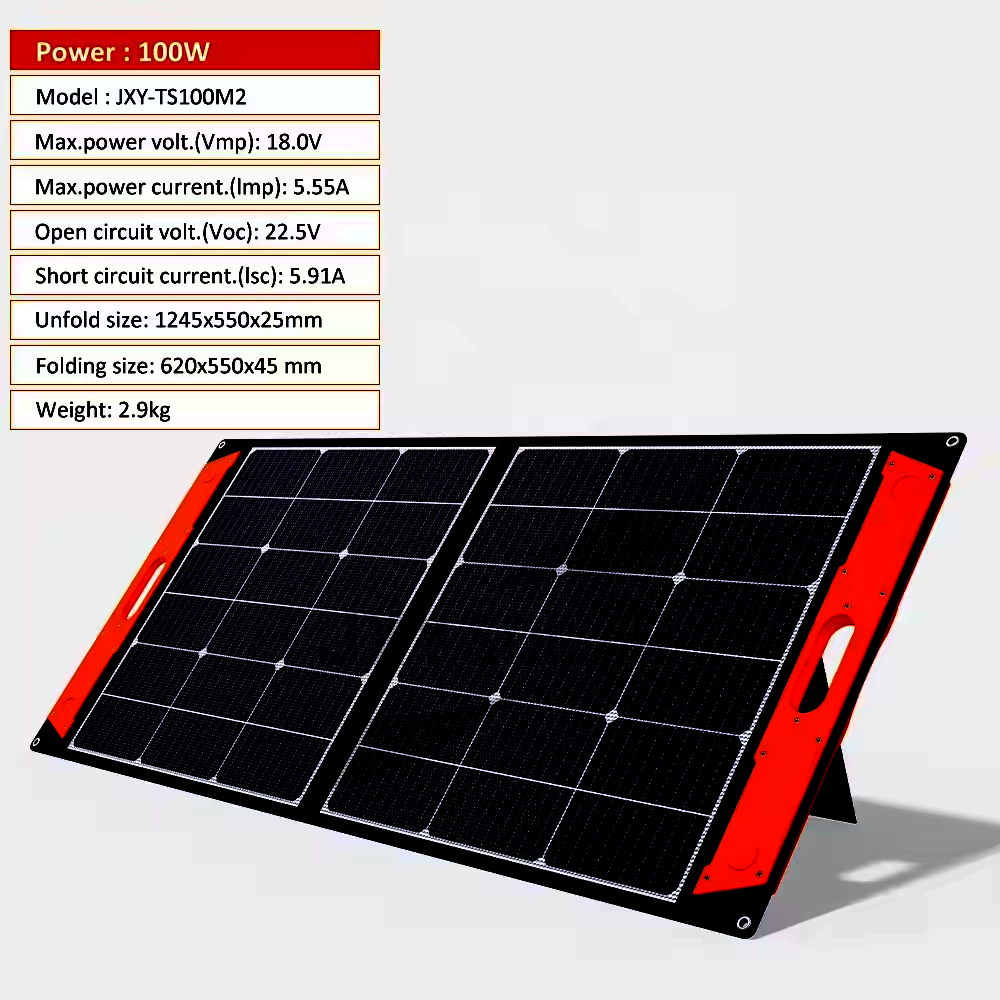

Electrical Data
- Maximum Power (Pmax): 102 Wp
- Voltage at Maximum Power (Vmpp): 18 V
- Current at Maximum Power (Impp): 5.55 A
- Open Circuit Voltage (Voc): 22.5 V
- Short Circuit Current (Isc): 5.91 A
- Panel Efficiency: 22.3 %
- Power Tolerance (Positive): +2 %
- Power Tolerance (Negative): -2 %
Material Data
- Panel Dimension (H/W/D): 1245 x 550 x 25 mm
- Weight: 2.9 kg
- Cell Size: 182 × 182 mm
- Cell Number: 18
- Encapsulant Type: ETFE
- Back Cover Type: BBF
- Frame Type: Frameless
![]()
