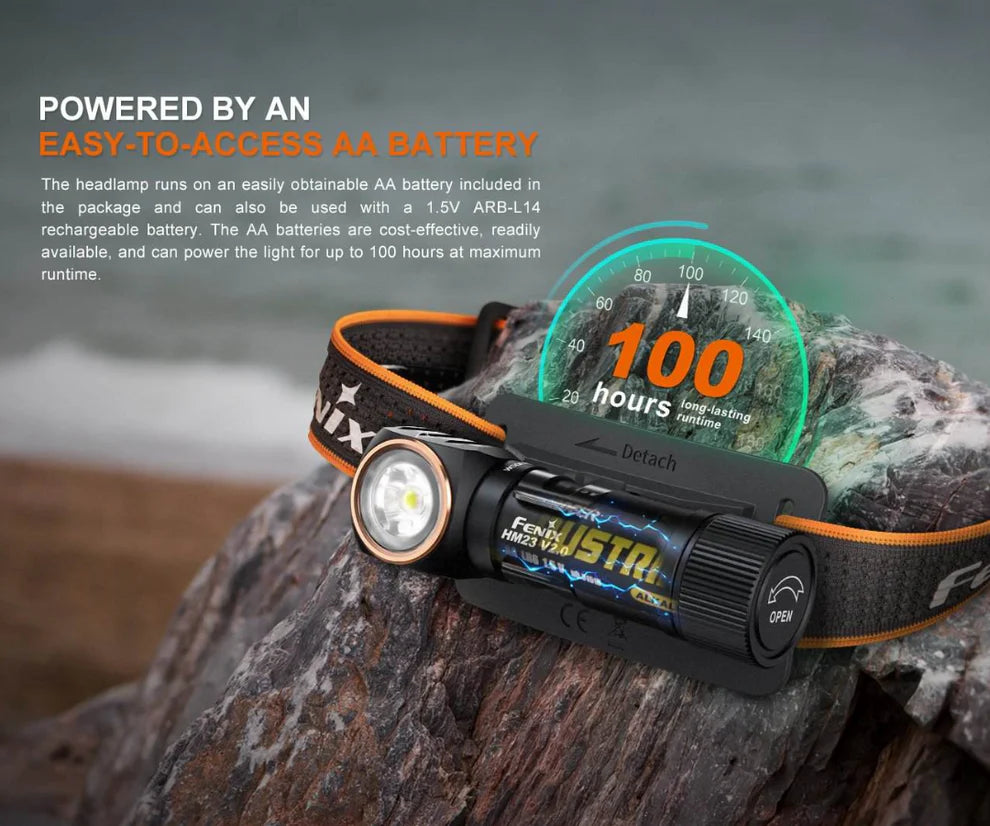

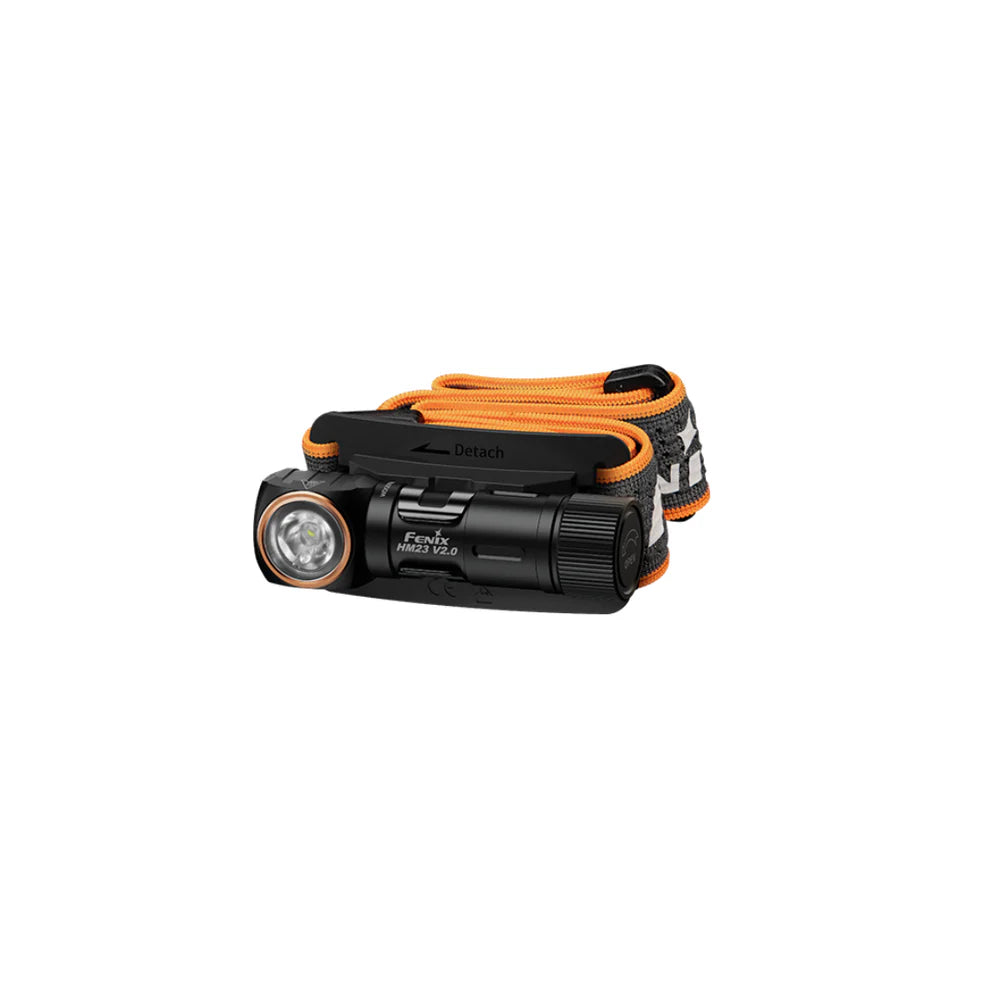

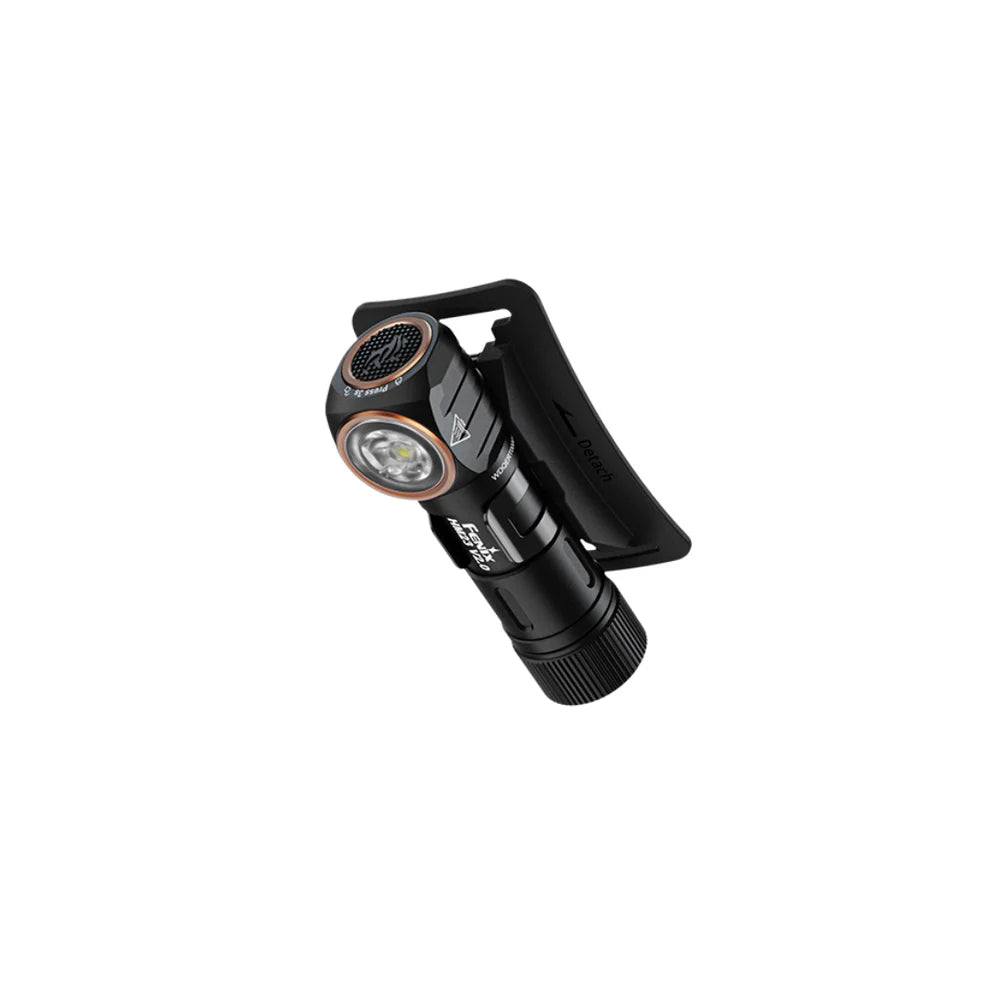

The Fenix HM23 V2.0 headlamp is a highly reliable multipurpose lightweight headlamp. The package comes with an easily accessible AA battery that offers a maximum runtime of up to 100 hours. It features a body clip and a magnetic tail for flexible mounting options, and it can be detached to be used as a flashlight.

This headlamp combines white and red light sources to meet different lighting needs. In addition to its lightweight and compact design, this headlamp features IP68-rated protection and 2 meters of impact resistance, making it suitable for rough use across a variety of outdoor activities.

Features:

• 300 lumens maximum output, 80 meters maximum beam distance.
• Utilizes one Luminus SST20 white LED and two 2835 red LEDs; with a life span of 50,000 hours each.
• Powered by one AA Alkaline (Included) or NiMh (Not Included) battery
• White and red light sources assist various lighting needs in different outdoor scenarios.
• Electronic lockout avoids accidental activation.
• Large side switch for fast and simple operation.
• Can be used as a headlamp and flashlight.

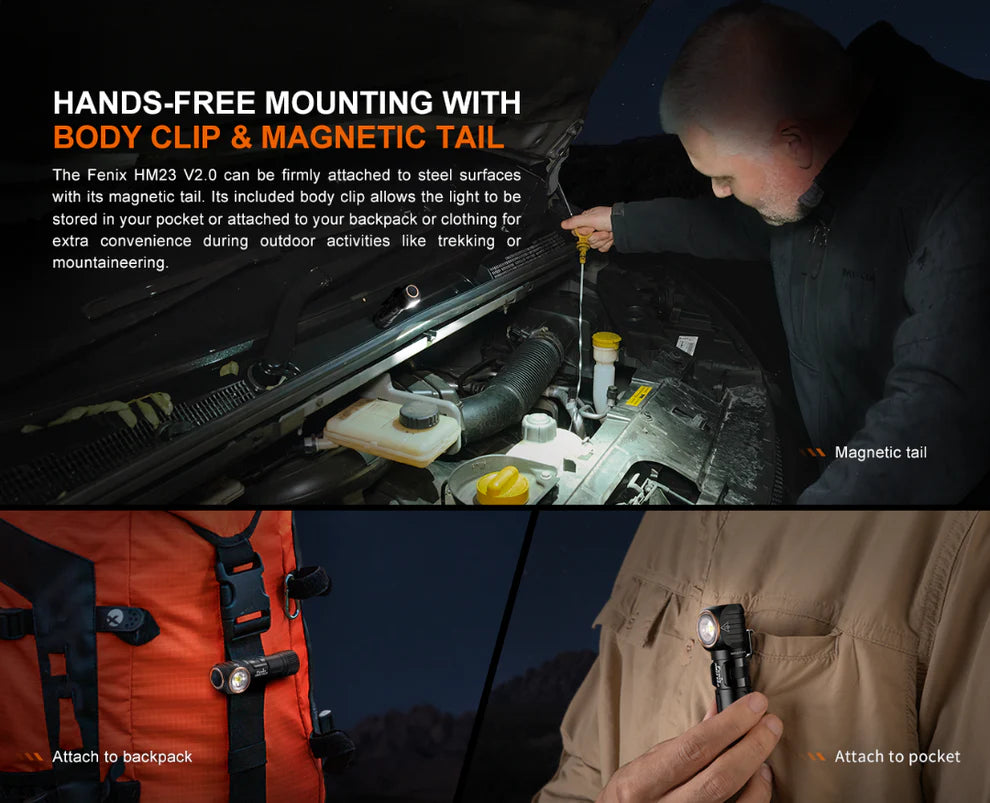

• Magnetic tail for hands-free use.
• Reverse polarity protection to protect from improper battery insertion.
• Lamp body is made of aluminum alloy material, lightweight and durable.
• IP68-rated protection and 2 meters impact resistance.
• Dimension: 73.6mm × 36mm × 30mm
• Weight: 86.3g (Including battery and headband)

Package Includes:

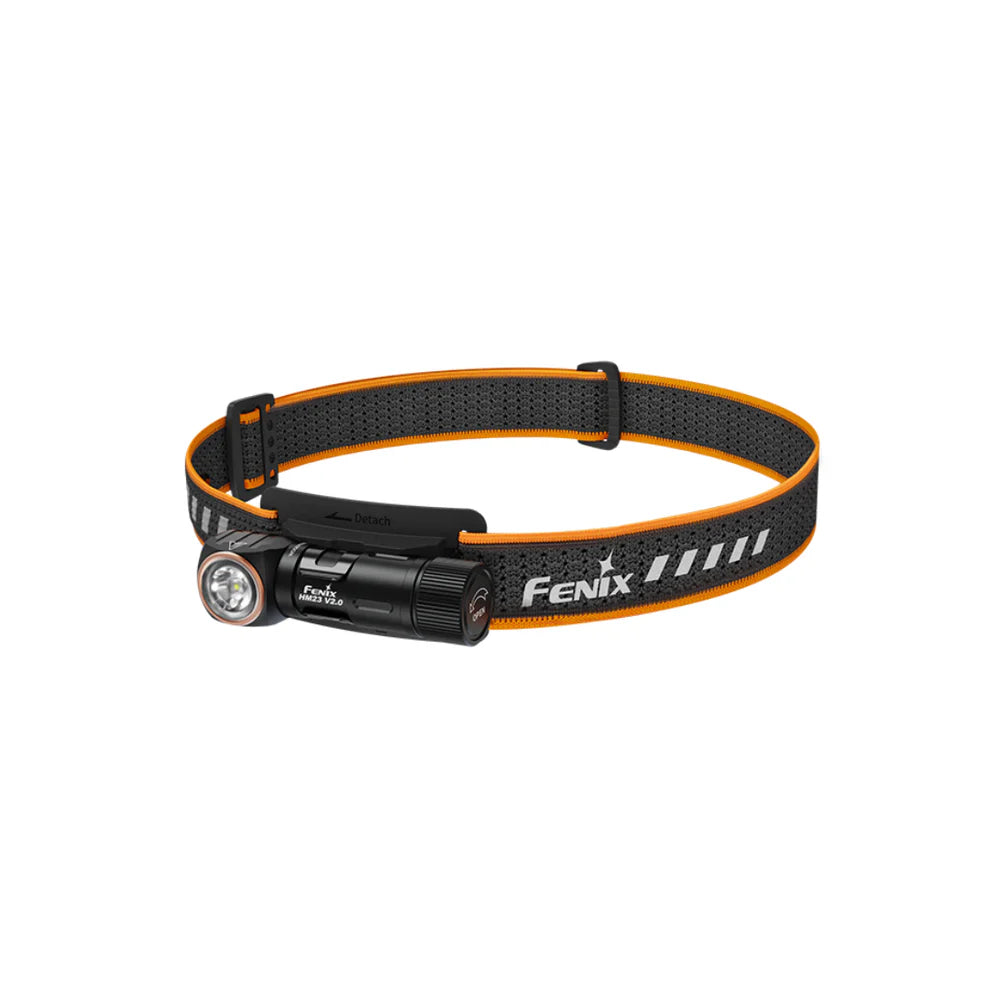

• 1 x Fenix HM23 V2.0 Headlamp
• 1 x AA Alkaline Battery (Disposable Type)
• 1 x Headband

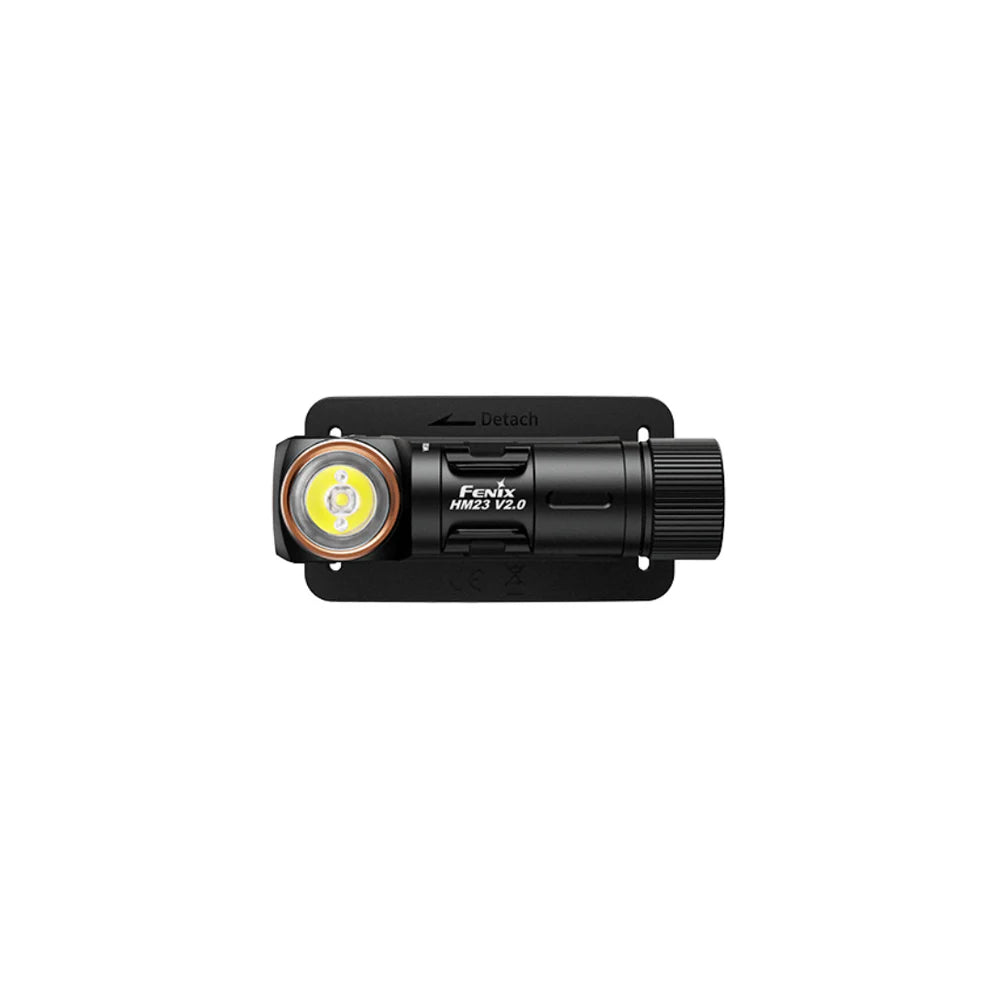

• 1 x Headlamp Mount
• 1 x Spare O-ring
• 1 x User Manual
• 1 x Warranty Card

How to use the Fenix HM23 V2.0

Press and hold for 0.5 seconds to switch the lamp on to White LED mode. Then press the button once to navigate through the light modes. Press the button twice within 0.5 seconds when the lamp is off to switch it to Red LED mode. Then press the button once to switch between Constant On and Flash.

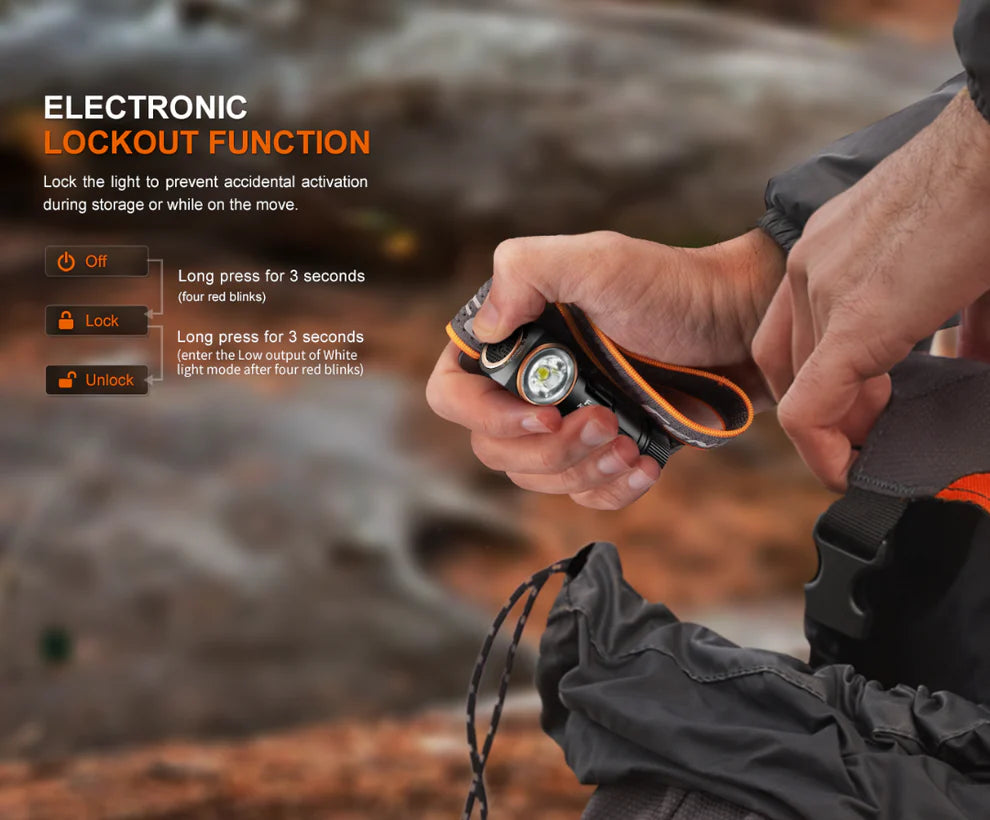

Lock-out mode

• If the torch is off, press and hold for 3 seconds for Lock-out mode to prevent the light from turning on accidentally. (torch shows Lock-out with 4 red flashes)
• To unlock it again, press and hold again for 3 seconds. After this, the lamp will turn on in White Low mode.

Light modes for the Fenix HM23 V2.0 head torch

White LED light:

• High (300 lumens, 88 metres: 5:22 hours AA, 9:00 hours ARB-L14-2200U)
• Med (50 lumens, 34 metres: 11:30 hours AA, 14:00 hours ARB-L14-2200U)
• Low (3 lumens, 8 metres: 100:00 hours AA, 90:00 hours ARB-L14-2200U)

Red LED light:

• Continuously on (5 lumens, 5 metres: 17:00 hours AA, 18:00 hours ARB-L14-2200U)
• Flashing (5 lumens, 34:00 hours AA, 36:00 hours ARB-L14-2200U)

Specifications:

• Brand: Fenix
• Series: HM Series
• Type: Headlamp
• Material: Aluminum
• Body Finish: Type III hard anodized
• Warranty: 2 years
• Suitable for: Camping, EDC (Everyday Carry)

Dimensions & Weight

• Body Diameter: 2 cm
• Head Diameter: 2.2 cm
• Height: 2 cm
• Length: 7.3 cm
• Weight: 86 g

Power Source

• Works On: 1x AA alkaline battery, 1x ARB-L14-2200U
• Compatible Batteries: 14500, AA alkaline
• Rechargeable: No
• Battery Indicator: No

Lighting

• Light Source: LED
• LED Types: Everlight 2835, Luminus SST20
• Light Colours: White, Red
• Light Modes: 5
• Additional Modes: Flashing
• Maximum Intensity: 300 lumens
• Minimum Intensity: 3 lumens
• Beam Type: Combined beam
• Beam Distance: 88 m
• Number of LEDs: 2
• SOS Mode: No
• Switch Type: Side switch

Durability

• Waterproof: Yes
• Waterproof Rating: Up to 2 meters
• IP Standard: IP68 (Dust and immersion proof)
