The Fenix SW05R-UV Clip On Flashlight is an essential tool for professionals who need a reliable, portable UV flashlight. With three brightness levels of white light and a 1500mW UV light, the SW05R-UV is a great choice for law enforcement and security personnel to inspect IDs, but it’s also an excellent all-around clip on flashlight. Plus, its 200° adjustable head means you can aim the light exactly where you need it. The large clip lets you securely attach it to your hat, shirt pocket, or vest while the magnetic tail means it can also be mounted to most metal surfaces. Extremely small, and powered by a built-in 700mAh rechargeable battery, this light is always ready to work. Whether you’re a police officer, private security guard, maintenance worker, or gadget lover, the SW05R-UV is the clip on flashlight that is compact, powerful, and designed to make your life easier.

 Features:

• White and UV light sources for various lighting demands.
• Utilizes a 365nm UV light source.
• Powered by a built-in 700mAh battery.
• Inner waterproof USB Type-C charging port for convenient charging.

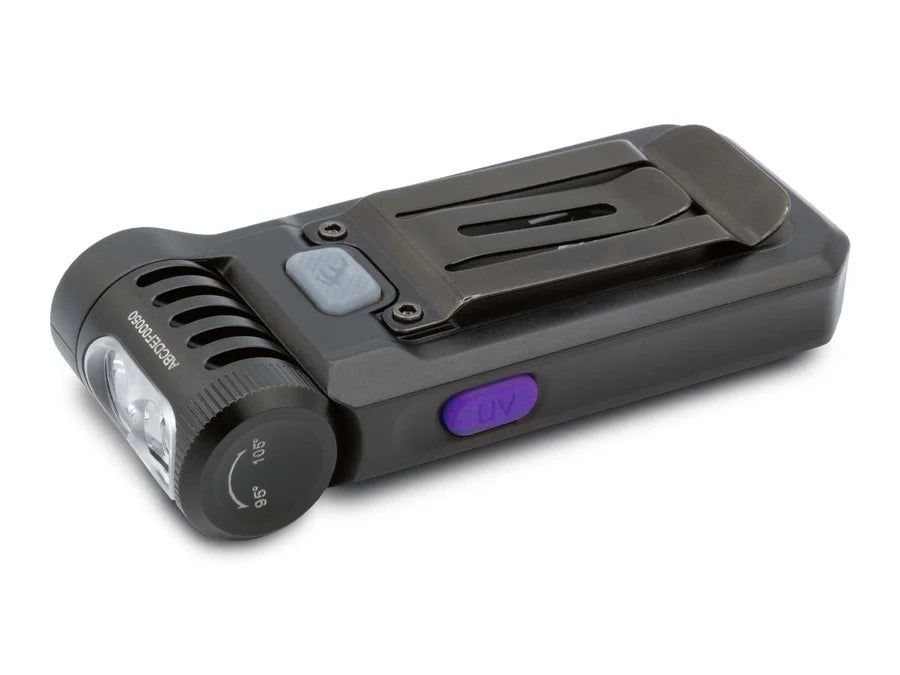

• 200° adjustable light head angle for flexible lighting from various directions.
• Thin and thick dual clip combined design for secure attachment to hat brim, pocket, or pack.
• Magnetic tail for hands-free use.
• Front white light switch and side UV light switch for on/off function, output selection, and mode switching.

Specifications:

• Max Lumens: 150
• Max Beam Distance: 128 feet (39 meters)
• Max Runtime: 49 hours
• Lighting Modes: Three brightness levels and a UV light
• Bulb Type: One high-performance white light LED and one 365nm UV LED
• Lens Material: Polycarbonate
• Color Temperature: Around 6500K
• Size:
  • Length: 2.72” (69mm)
  • Width: 1.14” (29mm)
  • Height: 0.63” (16mm)
• Weight: 1.90 oz. (24g) including battery
• Battery: Built-in 700mAh battery
• Included: USB Type-C charging cable
• Warranty: 2 years

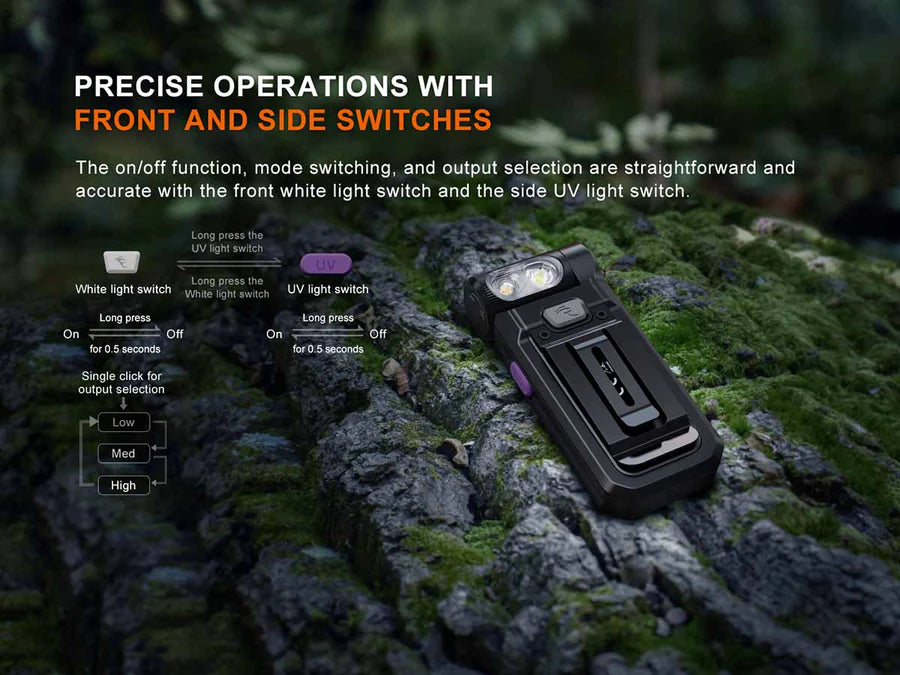

Operating Instructions:

On/off

Press and hold either switch for 0.5 seconds to turn on the light.

With the white light switched on, press and hold the white light switch for 0.5 seconds to turn off the light.

With the UV light switched on, press and hold the UV light switch for 0.5 seconds to turn off the light.

Output Selection

With the white light switched on, single click the white light switch to cycle through Low→Med→High.

Mode Switching

With the white light switched on, press and hold the UV light switch for 0.5 seconds to switch to the UV light. With the UV light switched on, press and hold the white light switch for 0.5 seconds to switch to the previously used output of the white light.

Intelligent Memory Circuit

The light memorizes the last selected output of white light. When the white light is switched on again the previously selected output will be recalled.

Charging

1. Turn off the light and connect the USB Type-C socket of the charging cable to the light.
2. The indicator will display red while charging and will turn green when fully charged.
3. Once charging is completed, be sure to unplug the charging cable to ensure the normal use of the light.

Note:

1. The normal charging time of the included battery is about 2 hours from depleted to fully charged with a 5 V/500mA charging adapter.
2. Recharge a stored light every four months to maintain optimum performance of the battery.
3. The light can be operated while charging.

Battery Level Indication

Each time the light is switched on, the indicator in the white light switch will show the current battery level and will last for 3 seconds. With the light switched off, single click the white light switch to check the battery status, the indicator will last for 3 seconds.

Green light on: saturated 100% - 85%

Green light flashes: sufficient 85% - 50%

Red light on: poor 50% - 25%

Red light flashes: critical 25% - 1%

Low Voltage Warning

When the voltage level drops below 3 V, the light is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the battery level indicator blinks red to remind you to recharge the battery and will continue to do so until the battery runs out.

Usage and Maintenance

• Fully charge the light in time to ensure normal function the next time it is needed.
• Disassembling the light can cause damage to the light and will void the warranty.
• The light may flicker, shine intermittently or even fail to illuminate due to the following reason:
  A: Poor battery level.
  Solution: Recharge the battery.

If the above method doesn't work, please contact the distributor.

Warning

• • Do NOT place this light in the reach of children!
  • Do NOT shine the light directly into the eyes of anyone!
  • Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
  • Do NOT use the light in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
  • This light will accumulate a significant amount of heat while operating, resulting in a high temperature of the light shell. Pay close attention to avoid burns.
  • Turn off the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
  • The LEDs of this light are not replaceable; so the whole light should be replaced when any of the LEDs reaches the end of its lifespan.
